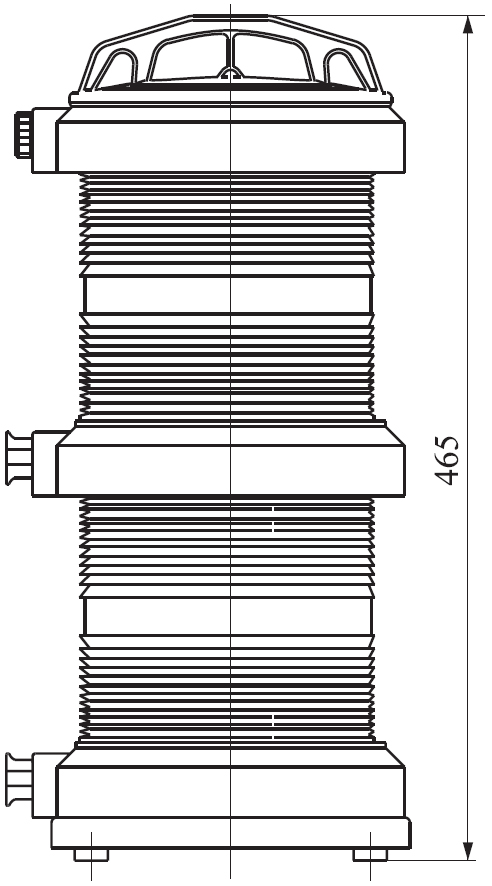

CXH6-101P Double-deck all-round light IMPA CODE:370426-D

CXH6-101P Double-deck all-round light IMPA CODE:370426-D

CXH6-101P Double-deck all-round light IMPA CODE:370426-D


  • Type/Name: CXH6-101P Double-deck all-round light
  • Lamp Holder: P28S
  • Voltage: 3n.m
  • Power: 24V/2x60W60cd,110V/2x60W60cd,220V/2x60W60cd
  • Protection Class: IP56
  • Material: 360°
  • Cable O.D: Φ12-Φ13
  • Color: Red Green Transparent
  • IMPA Code: 370426 / 370427 / 370428
  • Weight: 4.5kg

Details

CXH6-101P Double-deck all-round light

The Scope of application:

Applied to the ships with the length 50m or above 50m as lamp signal liaison when night navigation.

Product Feature:

1. The shell is made of high-strength engineering plastic PA+GF,the lampshade adopts injection of PC,lens hood adopts good quality stainless steel.

2. The signal lights have the whole seal structure,it is waterproof under the bad environment.

3. The connection between the lamp holder and the light base is clamshell type,it is easy to unscrew the top cover and replace the structure is more stable than the previous plug-in type.

4. The signal lights adopt the signal light’s bulb which conform to the ship norm,and the average life is more than 700h.

5. The signal lights can work normally under the temperature-30°C~55°C.
