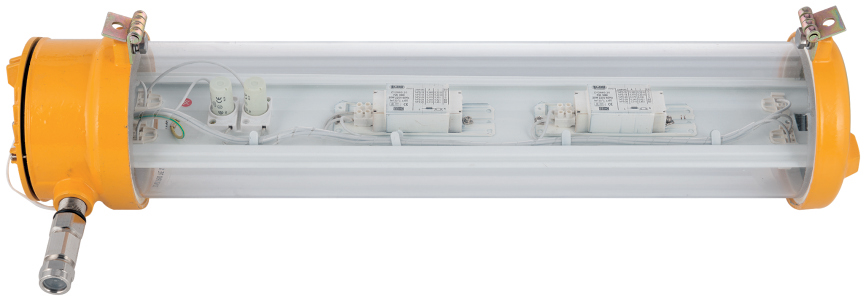

CFY20/30/40 EXPLOSION-PROOF FLUORESCENT LIGHT
CFY20/30/40 EXPLOSION-PROOF FLUORESCENT LIGHT
The scope of application
1. The shell adopts good quality stainless steel, good quality PC lampshade, with two glands, adopt fluorescent lamp.
2. The installation method of the lamp is hanging type and convenient to replace the lamp tube.
3. The lamp body adopts sealed structure, which has high waterproof and anti-corrosive performance
4.In accordance with the code for 《classification of sea-going steel ships》 and national standards GB3836-2000, GB12045, En50014, En50018 En60079.

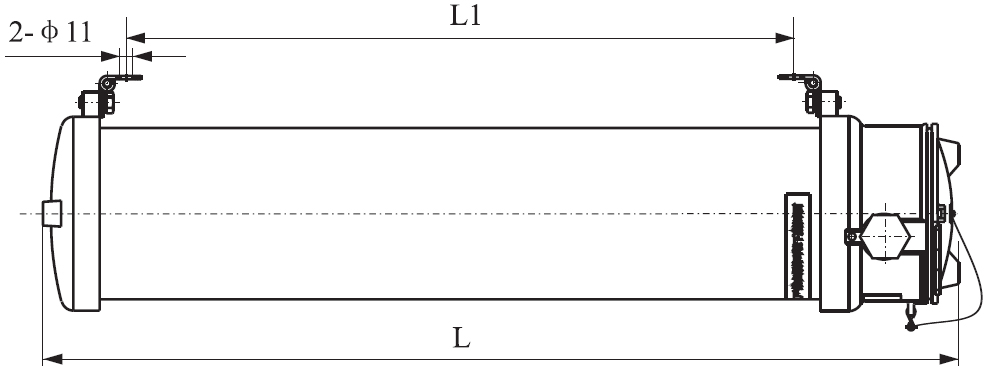

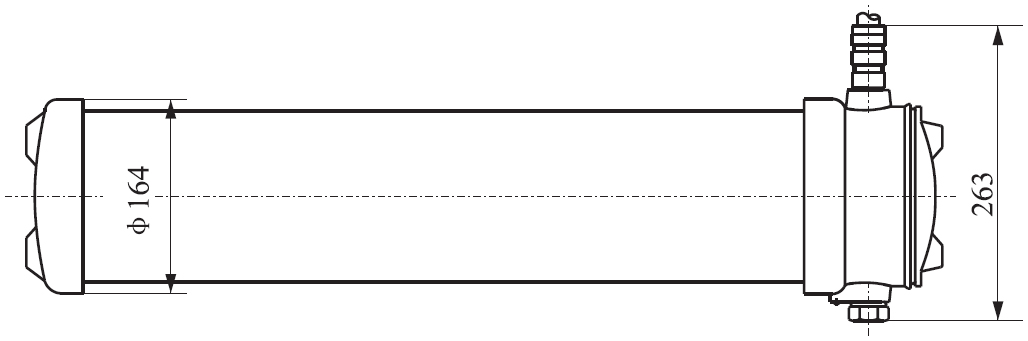

产品尺寸
| 型号Type | L | L1 |
| CFY20 | 775 | 556 |
| CFY30 | 1080 | 861 |
| CFY40 | 1385 | 1166 |
规格说明
|
型号
Type
|
防爆标志
Explosion-proof mark
|
电压
Voltage
|
功率
Power
|
灯座
Lamp Holder
|
防护等级
Protection Class
|
电缆外径
Cable O.D
|
重量
Weight
|
|
CFY20-2
|
Exd IICT6
|
220V/50HZ
220V/60HZ
110V/60HZ
|
2x20W
|
G13
|
IP56
|
Φ13-Φ14
|
11.5kg
|
|
CFY20-1
|
1x20W
|
||||||
|
CFY30-2
|
2x30W
|
13.5kg
|
|||||
|
CFY30-1
|
1x30W
|
||||||
|
CFY40-2
|
2x40W
|
15kg
|
|||||
|
CFY40-1
|
1x40W
|
